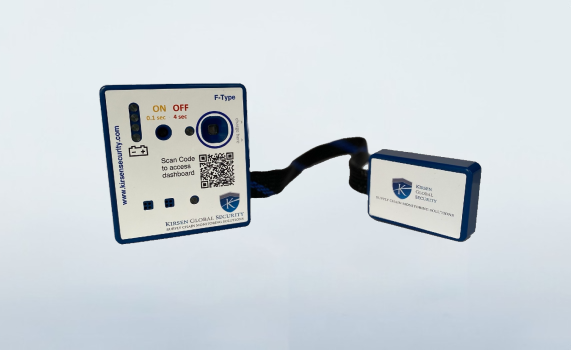

F-Type
Cargo security for truck monitoring
Universal fit tracker with high security measures and superior
position accuracy
Spec sheet
(download)
Security features
Door open detection with laser and proximity sensor
Light
Motion sensor
Cargo integrity and handling compliance
Temperature -30° to +65°
Humidity 0% to 100%
Shock 3 dimensional
Vibration
Tilt 0° to 180°
Advanced modes
All sensors configurable
Movement detection and higher frequency sending during movement Configurable scheduled updates and exception alerts for every sensor Geofencing and geo-corridors
Coverage:
Global (95%), Several network operators per country
Data Transfer:
GPRS/EDGE, 3G, LTE, Quad-band GSM/GPRS 850/900/1900/2100 MHz, Dual-band UMTS 1900/2100 MHz, LTE Bands 1,2,4,5,8,12; Secured wireless data encryption (APN)
Communication to BTD:
Secured Bluetooth Communication, remote control
Location Tracking:
Position Accuracy: <2.5m CEP
Receiver Sensitivity: -167dBm (tracking)
Powerful GPS sensor with -167 dBm sensitivity
Wifi location tracking
GPS Jamming detector
72 channel GPS, Galileo, GLONASS
SIM Card:
3FF, micro size, embedded by default, exchangeable
Battery:
Lithium-Polymer, rechargeable with MicroUSB / USB-C, 5.000 mAh, 3.7Volt, 18.5 Wh, BTD: 3.300mAh Li-Ion, rechargeable, UN38.3 certified
Protection:
IP65
Dimensions:
internal block: 101х92х28 mm
external block: 72х50х16 mm
Weight:
410 grams
Firmware and sensor control:
Over the Air sensor configuration,
Over the air firmware updates / modifications
Certifications:
UN38.3, CE, MSDS, RoHs
Door open detection with laser and proximity sensor
Light
Motion sensor
Cargo integrity and handling compliance
Temperature -30° to +65°
Humidity 0% to 100%
Shock 3 dimensional
Vibration
Tilt 0° to 180°
Advanced modes
All sensors configurable
Movement detection and higher frequency sending during movement Configurable scheduled updates and exception alerts for every sensor Geofencing and geo-corridors
Coverage:
Global (95%), Several network operators per country
Data Transfer:
GPRS/EDGE, 3G, LTE, Quad-band GSM/GPRS 850/900/1900/2100 MHz, Dual-band UMTS 1900/2100 MHz, LTE Bands 1,2,4,5,8,12; Secured wireless data encryption (APN)
Communication to BTD:
Secured Bluetooth Communication, remote control
Location Tracking:
Position Accuracy: <2.5m CEP
Receiver Sensitivity: -167dBm (tracking)
Powerful GPS sensor with -167 dBm sensitivity
Wifi location tracking
GPS Jamming detector
72 channel GPS, Galileo, GLONASS
SIM Card:
3FF, micro size, embedded by default, exchangeable
Battery:
Lithium-Polymer, rechargeable with MicroUSB / USB-C, 5.000 mAh, 3.7Volt, 18.5 Wh, BTD: 3.300mAh Li-Ion, rechargeable, UN38.3 certified
Protection:
IP65
Dimensions:
internal block: 101х92х28 mm
external block: 72х50х16 mm
Weight:
410 grams
Firmware and sensor control:
Over the Air sensor configuration,
Over the air firmware updates / modifications
Certifications:
UN38.3, CE, MSDS, RoHs
