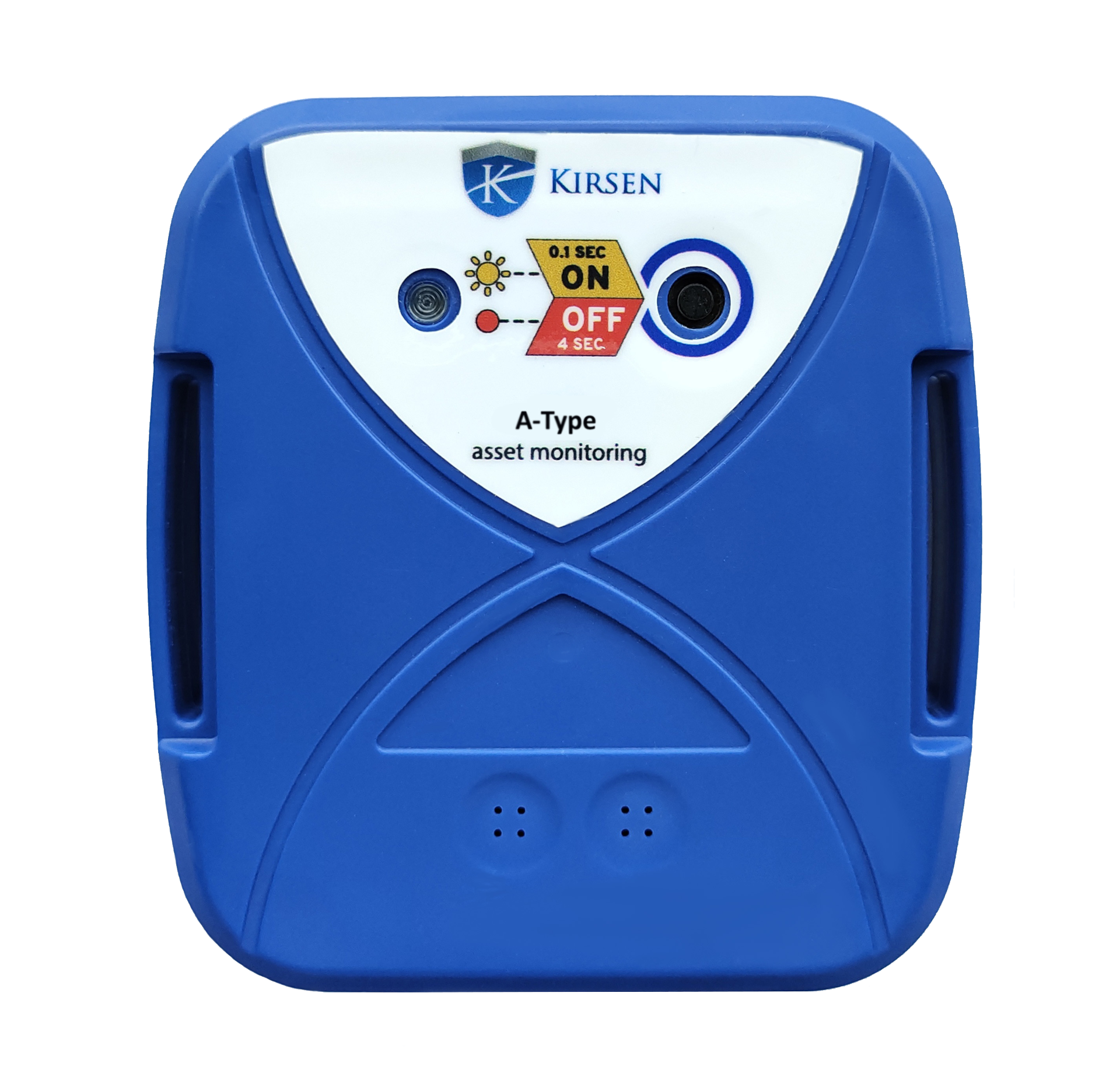

A-type
Asset tracking
All modes of transport: Air, Ocean, Rail, Truck and all loading units. The A-type tracks and provides you with live updates for any asset that is sent around the globe.
Spec sheet
(download)
Cargo integrity and handling compliance
Temperature -30° to +65°
Humidity 0% to 100%
Shock 3 dimensional
Vibration
Tilt 0° to 180°
Advanced modes
All sensors individually configurable and alert enabled
Flight detection mode for air cargo
Movement detection and higher frequency sending during movement Geofencing and geo-corridors
Coverage:
Global (95%), Several operators per country
Data Transfer:
GPRS/EDGE, 3G, LTE, Quad-band GSM/GPRS 850/900/1900/2100 MHz, Dual-band UMTS 1900/2100 MHz, LTE Bands 1,2,4,5,8,12, Secured wireless data encryption (APN)
Communication to BTD
Secured Bluetooth Communication, remote control
Location Tracking:
L1 Receiver: 16 channels; Position Accuracy: <2.5m CEP; Receiver Sensitivity: -167dBm (tracking);
SIM Card:
3FF, micro size, embedded by default, exchangeable
Battery:
Lithium-Ion, rechargeable with Micro USB / USB-C, 9600 mAh, 3.6Volt, 34,56 Wh, UN38.3 certified, IEC62133
Protection:
IP65
Dimensions:
33 x 96 x 103 mm
Weight:
315 grams
Firmware and sensor control:
Over the Air sensor configuration
Over the air firmware updates/modifications
Certifications:
UN38.3, IEC62133; 1,2 m drop test; CE, FCC, RoHS DO-160, MSDS,
PI 967-Identification and Classification Report for Air Transport of Goods
Airline Approvals
Temperature -30° to +65°
Humidity 0% to 100%
Shock 3 dimensional
Vibration
Tilt 0° to 180°
Advanced modes
All sensors individually configurable and alert enabled
Flight detection mode for air cargo
Movement detection and higher frequency sending during movement Geofencing and geo-corridors
Coverage:
Global (95%), Several operators per country
Data Transfer:
GPRS/EDGE, 3G, LTE, Quad-band GSM/GPRS 850/900/1900/2100 MHz, Dual-band UMTS 1900/2100 MHz, LTE Bands 1,2,4,5,8,12, Secured wireless data encryption (APN)
Communication to BTD
Secured Bluetooth Communication, remote control
Location Tracking:
L1 Receiver: 16 channels; Position Accuracy: <2.5m CEP; Receiver Sensitivity: -167dBm (tracking);
SIM Card:
3FF, micro size, embedded by default, exchangeable
Battery:
Lithium-Ion, rechargeable with Micro USB / USB-C, 9600 mAh, 3.6Volt, 34,56 Wh, UN38.3 certified, IEC62133
Protection:
IP65
Dimensions:
33 x 96 x 103 mm
Weight:
315 grams
Firmware and sensor control:
Over the Air sensor configuration
Over the air firmware updates/modifications
Certifications:
UN38.3, IEC62133; 1,2 m drop test; CE, FCC, RoHS DO-160, MSDS,
PI 967-Identification and Classification Report for Air Transport of Goods
Airline Approvals
Certified by 50+ airlines for operational tracking of air transportation.
