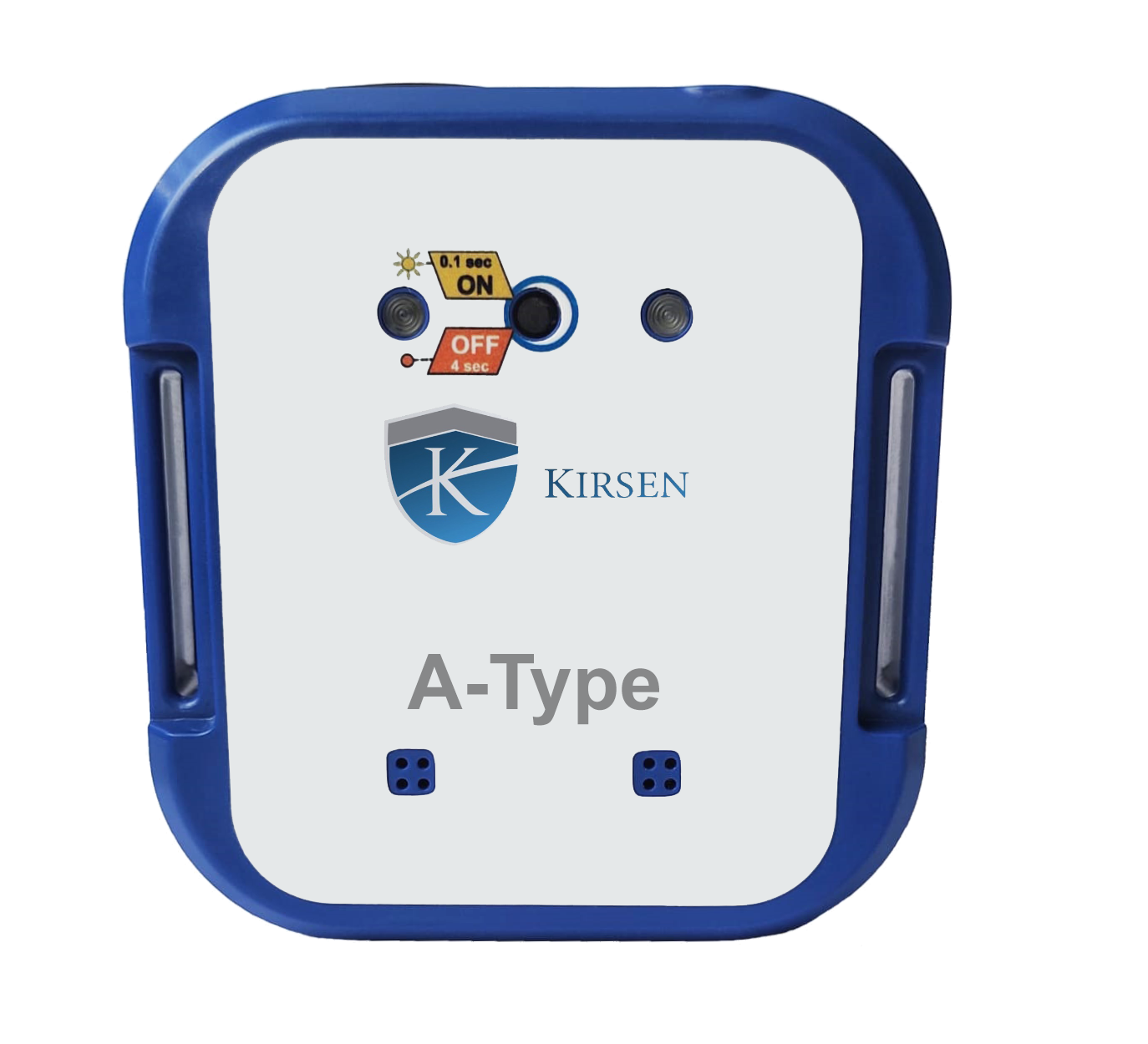

A-type Rev 3.0
Asset security monitoring

A-type Rev 3.0 adds a laser (door) sensor, light sensor and Wifi
positioning to get you alerted when your assets are at risk.
screenshot_2021-03-1
screenshot_2021-03-1
screenshot_2021-03-1
39airlanes
Spec sheet
Cargo integrity and handling compliance
Temperature -30° to +65°
Humidity 0% to 100%
Shock 3 dimensional
Vibration
Tilt 0° to 180°

Security features
Door open detection
Light

Advanced modes
All sensors individually configurable and alert enabled
Flight detection mode for air cargo
Movement detection and higher frequency sending during movement Geofencing and geo-corridors

Coverage:
Global (95%), Several operators per country

Data Transfer:
GPRS/EDGE, 3G, LTE, Quad-band GSM/GPRS 850/900/1900/2100 MHz, Dual-band UMTS 1900/2100 MHz, LTE Bands 1,2,4,5,8,12,
Secured wireless data encryption (APN)

Communication to BTD
Secured Bluetooth Communication, remote control

Location Tracking:
Position Accuracy: <2.5m CEP
Receiver Sensitivity: -167dBm (tracking)
Powerful GPS sensor with -167 dBm sensitivity
Wifi location tracking
GPS Jamming detector
72 channel GPS, Galileo, GLONASS

SIM Card:
3FF, micro size, embedded by default, exchangeable

Battery:
Lithium-Ion, rechargeable with Micro USB / USB-C, 9600 mAh, 3.6Volt, 34,56 Wh, UN38.3 certified, IEC62133

Protection:
IP65

Dimensions:
33 x 96 x 103 mm

Weight:
315 grams

Firmware and sensor control:
Over the Air sensor configuration
Over the air firmware updates/modifications

Certifications:
UN38.3, IEC62133; 1,2 m drop test; CE, FCC, RoHS DO-160, MSDS, PI 967-Identification and Classification Report for Air Transport of Goods

Airline Approvals:
43 Airlines certifications for live tracking of air cargo: Cargolux Airlines, Qatar Airways, Cathay Pacific Airways, AirbridgeCargo Airlines, Cargo Logic Air, Lufthansa plus Aerologic, Singapore Airlines, Emirates, Air China Cargo, China Cargo Airlines, Korean Air, Turkish Airlines, Eva Airways, United Airlines, Silk Way West, Asiana, Etihad, Air Canada, China Airlines, All Nippon Airways, Nippon Cargo Airlines, Swiss Airline, Malaysia Airlines, Hongkong Airlines, United Parcel Service, Virgin Atlantic, Virgin Australia, Cargo, C.A.L Cargo AirLine, Polar Air Cargo / Atlas Air, TNT Airways /ASL, British Airways, LATAM Airline / LAN Chile / TAM, Oman Air, Air Atlanta Icelandic, ASL Airlines, Cargolux Italia, Saudia, Icelandair, Austrian Airlines, National Airlines, CC Air Cargo / Air Belgium, Japan Airlines, Air France KLM



download_2

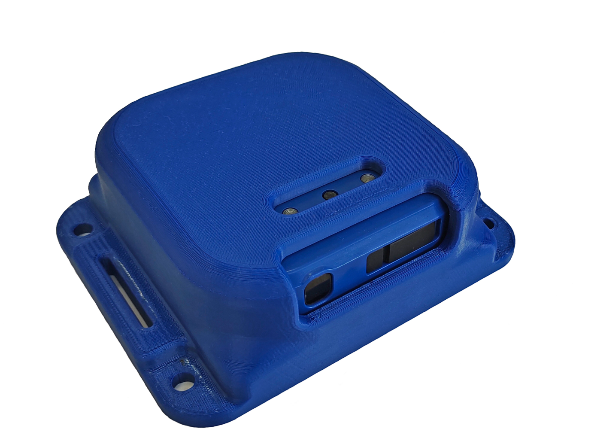

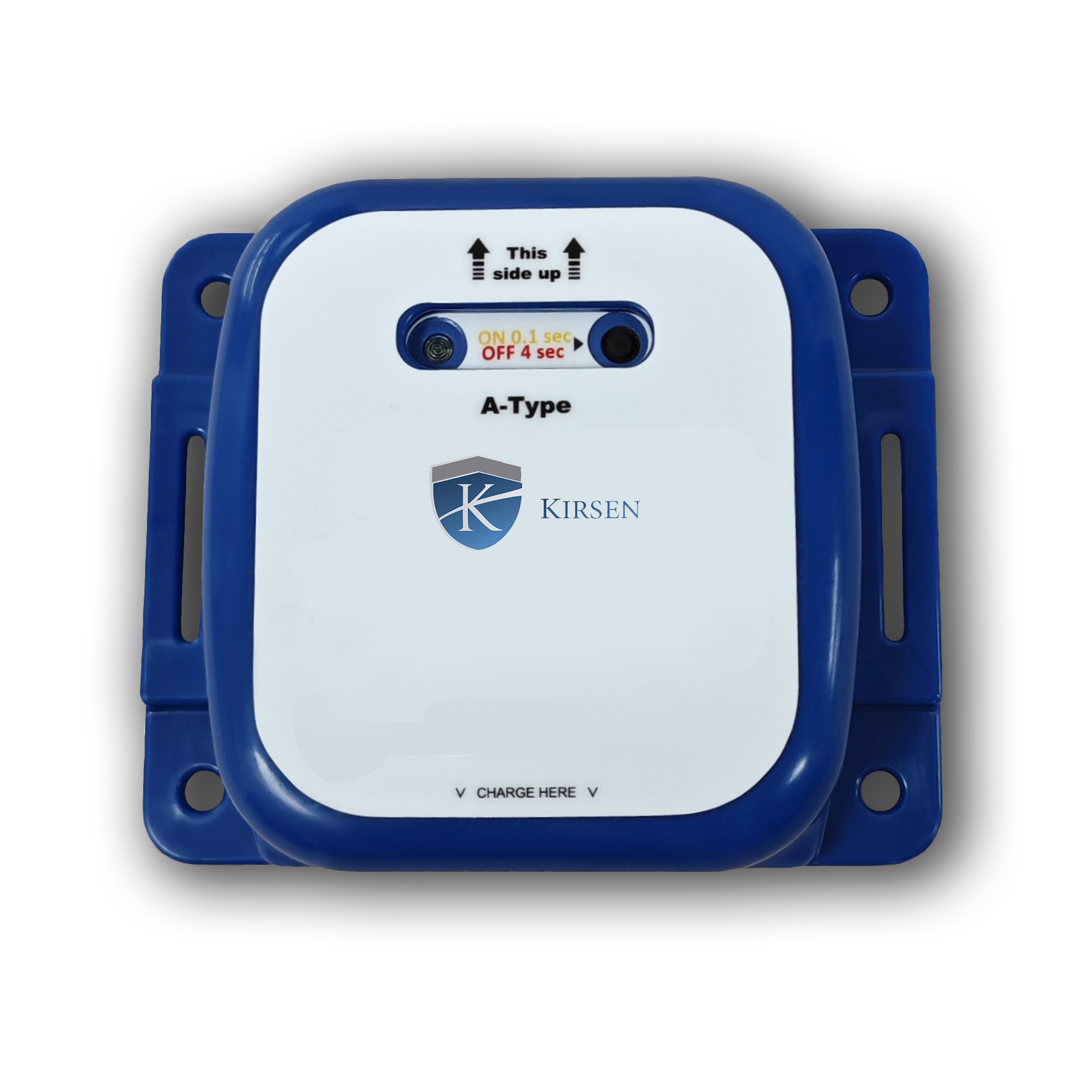

Protective Cover (Armor)
A-type-rev3 protective cover

The AR3 casing is made of high-strength plastic, reliably protects the GPS-tracker A-type3 from bumps and falls, without reducing the characteristics of the device. It is used for external installation of the device for additional protection of the tracker used in places with an increased risk of mechanical damage (construction sites, warehouses, etc.)


Specifications


Compatibility:
A-type 3


Material:
ABS


Static load:
up to 1700 kg


Shock resistance:
up to 50 Joule energy equal to IK11 protection level (EN 62262).
NOTE: for any shocks applied to the armor surface.


Features:
Shockproof


Installation method:
belt/screws (not included)


Dimensions:
140 x 115 x 45 mm


Weight:
110 grams

Test Drive of Armor (Protective Casing)
Installation Video Tutorial
