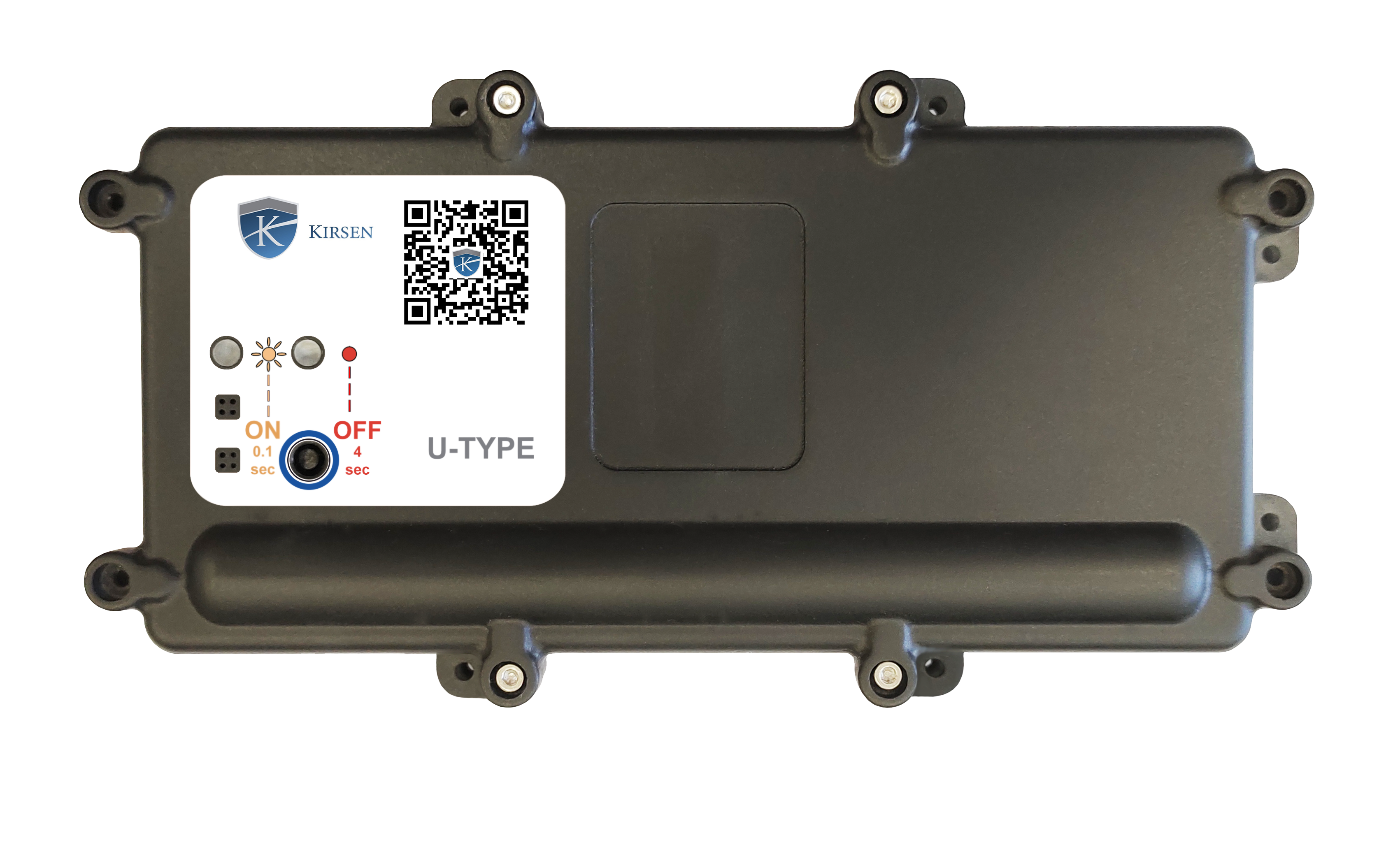

U-type
Container Tracking and Security

A state of the art security and monitoring device for cargo with ultra sensitive radiation sensor.
GPS and Connectivity
Ultra sensitive radiation
Spec sheet
Cargo integrity and handling compliance:
Temperature -30° to +65°
Humidity 0% to 100%
Shock 3 dimensional
Vibration
Tilt 0° to 180°

Radiation:
Unique proprietary super-sensitive sensor is capable to detect sources of radioactivity inside of cargo or nearby, even the weak sources.

Type of radiation detected:
gamma

Range of measurements:
Equivalent dose rate 20...140000 uR∙h-1
Energies 0.08 ... 3.0 MeV

Pressure:
Measures the air pressure of environment

Advanced modes:
All sensors configurable
Movement detection and higher frequency sending during movemen
Configurable scheduled updates and exception alerts for every sensor
Geofencing and geo-corridors

Coverage:
Global (95%), Several network operators per country

Data Transfer:
Worldwide coverage
2G, LTE, Data encryption Quad band 2G, Multi Band LTE, (LTE В1/В2/В3/В4/В5/В7/В8/В12/В13/В18/В19/В20/В25/В26/В28/В66)

Location Tracking:
GPS or cellular-based location (cell-id)

SIM Card:
3FF

Battery:
Li-Ion battery with 3-4 mo battery life with typical settings

Charging port:
MicroUSB standard port, 5V DC, 0.5-1A

Protection:
IP65
Dimensions:
230 x 120 x 23 mm

Weight:
500 grams

Certifications:
UN38.3, CE, MSDS, RoHs
